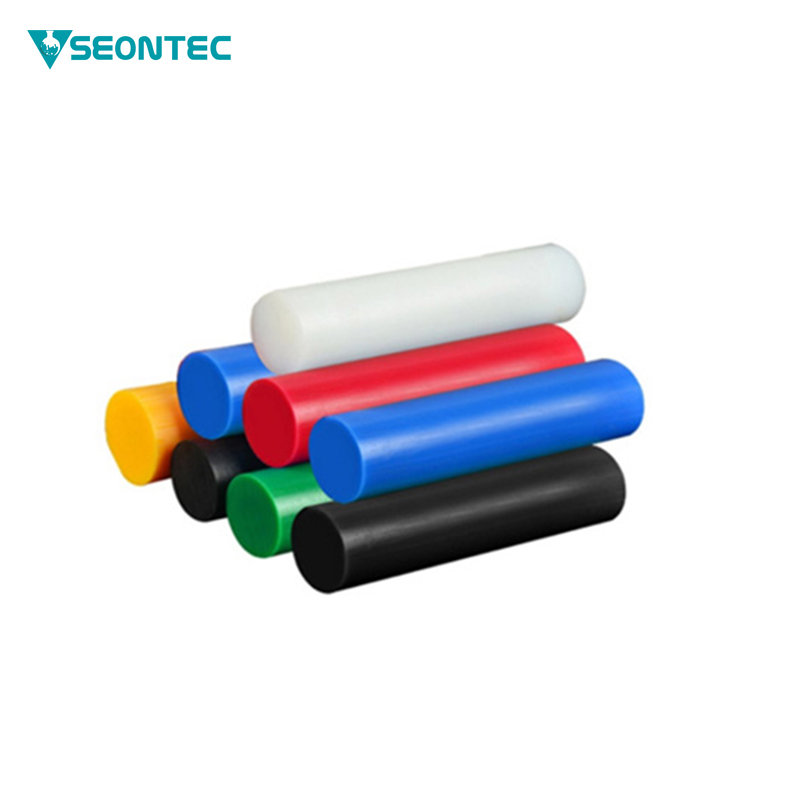

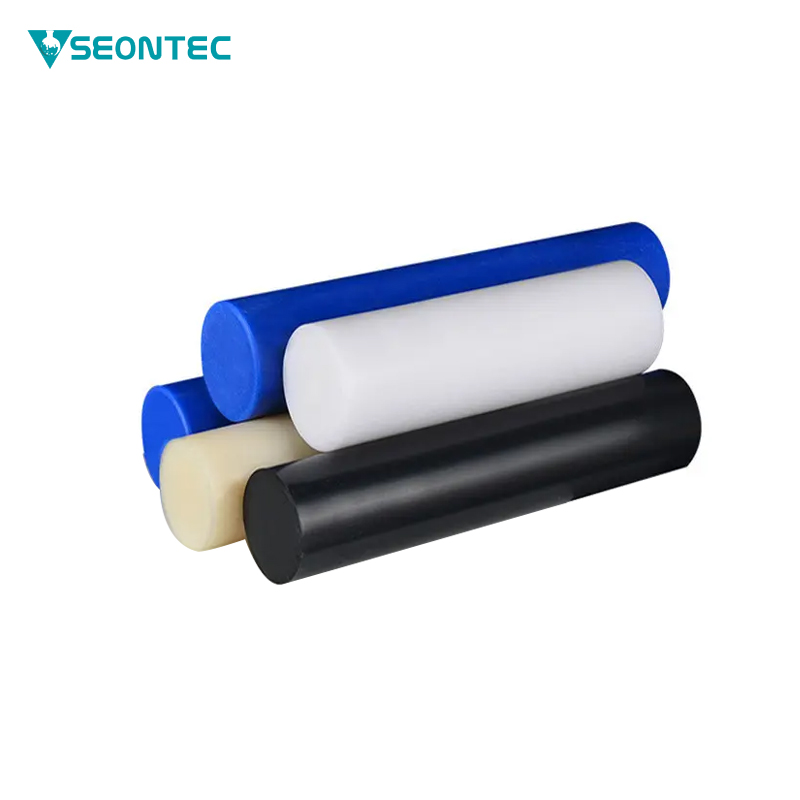

UHMWPE Rod

Collect

This is the highest quality polyethylene that can be used in harsh working environments and in a variety of applications.

It is ideal for many difficult application conditions.

Mold size chart
Width × Length (mm)	thickness	color
1250×4040	6-200 mm	White black green yellow blue, red orange, customized
1350×2550
1350×4170
1550×4170
1650×6150
2020×3030
2150×5370

Physical and mechanical properties of ultra-high molecular weight polyethylene
property	Test Method	unit	Typical
property	Test Method	unit	virgin	regeneration
density	ISO 1183，GB/T 1033(ASTM D792)	grams per cubic centimeter	0.93 – 0.95	0.94-0.96
molecular weight	viscosity	g/mol	≥4 × 106	≥3 × 106
coefficient of friction	ISO 8295，GB/T10006(ASTM D1894)	---	0.15-0.20	0.15-0.20
Yield strength	ISO 15527，GB/T 1040(ASTM D638)	N/mm2	15-20	15-20
Breaking strength	ISO 15527, GB/T 1040(ASTM D638)		≥30	≥25
Elongation at break	ISO 15527, GB/T 1040(ASTM D638)	%	≥50	≥50
Abrasion Index (Mortar)	ISO 15527, GB/T 1040(ASTM D638)	-	~100	130-150
Impact Strength (with V-notch)	ISO 11542-2，GB/T 1843(ASTM D256A)	kJ/m2	≥130	≥70
hardness	ISO 868 / GB/T 2411(ASTM d2240)	Coast D	61-63	63-66
Operating temperature	-	°C	-100 to +80	-100 to +80
Thermal expansion	ISO 11359-2/GB/T 36800.2(ASTM D696-03)	K-1	≈ 2 × 10-4	≈ 2 × 10-4
melting point	ISO 11357-3，GB/T 19466.3(ASTM D3418)	°C	133 – 137	133 – 137
The actual properties need to be confirmed by the order. These properties need to be tested by the manufacturer or a third-party testing lab.

1. Conveying machinery

2. Food machinery

3. Papermaking machinery

4. Textile machinery

5. Construction industry

6. Chemical industry

7。 Port machinery

8. General Equipment

9. Sports

10. Medical industry

11. Refrigeration machinery, shielding plates for nuclear power plants, electroplating parts, ultra-low temperature mechanical parts
